Changelog
- 11.01.2021: Added information about the new Citrix ADC Gateway (formerly NetScaler) firmware releases, which solve the memory leak issue with
-helloVerifiyRequest - 24.12.2020: Added information about the official Citrix Knowledge Center article CTX289674
Added a final summary, that repeats all possible solutions
Maked it a lot clearer, that-helloVerifiyRequestdoesn’t seem to work well - 22.12.2020: Added a warning note, that
-helloVerifiyRequestdoesn’t work on all Citrix ADC (NetScaler) firmware versions - 21.12.2020: Added a third possible solution regarding
-helloVerifiyRequest - 21.12.2020: Initial version
The situation
During the night from Saturday (19.12.2020) to Sunday (20.12.2020) our Zabbix Monitoring informed us, that several Citrix Gateway VPX (50) appliances were at its license cap. We investigated the situation and soon found out, that we had 0 ICA sessions on most of them, hence no explanation for the traffic.
The search
Before we started the investigation, we took each and every Citrix Gateway VPX offline, to gather time for the research.
We considered several possible root causes for the issue, for example:
- Malware on the VPX appliance
(although all are up-to-date, but you may never know) - VPX being part of a botnet
- Malware inside the customers network, leveraging the VPX in some form or another
- Bruteforce attacks, although all appliances have 2FA or MFA configured
- DDoS
After quite some tests we were quite sure, that only the last option would be viable:
To proof our theories, we brought test appliances back online and only blocked the potential source IPs of the DDoS at the corporate firewall level. The bandwidth consumption on the Citrix VPX immediately went down to zero.
One possible solution
We then started blocking the source IPs one by one on the corporate firewall, but soon realized, that this would be an impossible task, although we saw immediate relief. So we decided to completely block UDP:443 targeting the customers Gateway VIP on the corporate firewall level, as we are luckily not dependent on Citrix EDT.
The next day

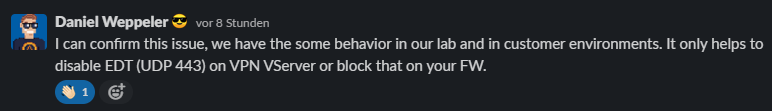

During Monday morning (21.12.2020) we found additional evidence in the EUC community:
And on Twitter, that we were not alone, and that our conclusions were somewhat correct:
Anyone seen UDP reflect DDoS attacks on #citrix #netscaler lately??
— Marius Sandbu (@msandbu) December 20, 2020
It seems a worldwide UDP:443 (EDT) DDOS attack against #NetScaler #gateway is active since last night. I found these source IP addresses of the attackers in my nstraces:
45.200.42.0/24
220.167.109.0/24
45.248.9.195
206.71.159.131
46.229.195.108
117.27.239.154
13.69.68.47
(1/3) pic.twitter.com/AuAg72BsEY— Daniel Weppeler (@_DanielWep) December 21, 2020
We then double checked all our managed corporate Firewalls, if we correctly blocked UDP:443 DTLS for our Citrix Gateway customers.
Another possible solution

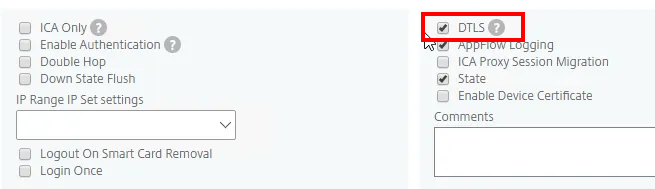

Additionally we had one case, where we weren’t able to block UDP:443 on the corporate firewall, so we disabled DTLS on the Citrix Gateway virtual server instead.
Third possible solution
This solution is only recommended, if you are on firmware version:
- 13.0-71.44 and later
- 12.1-60.19 and later
- 11.1-65.16 and later
Otherwise, you will have memory leaks which will crash your Citrix ADC, see paragraph below!
By now several Citrix ADC experts did came up with a third solution, which does not require to prevent any EDT/UDP DTLS connection on port 443. With the following command, you can enable that those requests are properly validated by Citrix ADC. They also mention, that this feature comes with a small performance degradation on the initial connection. On the other hand you might not need to alter your corporate firewall rules, and are still able to benefit from EDT protocol:
set ssl dtlsProfile nsdtls_default_profile -helloVerifyRequest ENABLED
If you are making use of Citrix ADC and have enabled DTLS/EDT (UDP via port 443) you might need to run this command: "set ssl dtlsProfile nsdtls_default_profile -helloVerifyRequest ENABLED". This will prevent you from future UDP amplification attacks. #NetScaler #CitrixADC
— Anton van Pelt (@AntonvanPelt) December 21, 2020
if you want to stick with @Citrix @CitrixAppDesktp @CitrixNetwork ADC NetScaler with #EDT turned-on, you might mitigate the attack surface by this:
set dtlsProfile nsdtls_default_profile -helloVerifyRequest ENABLED
there will be a small perf degradation on initial handshake https://t.co/Esl96QU1HU
— Thorsten Rood (@ThorstenRood) December 21, 2020
Update regarding -helloVerifiyRequest
Update: This issue has been solved, if you are on firmware version:
- 13.0-71.44 and later
- 12.1-60.19 and later
- 11.1-65.16 and later
There are confirmed cases on Twitter and in my blog comments (see below), that the -helloVerifiyRequest option doesn’t work reliable on all different Citrix ADC (NetScaler) firmware versions out there. Please test this setting properly in your environment. I don’t have an exact list, but there are several firmware versions out there, where -helloVerifiyRequest will lead to a memory leak, which will potentially crash you Citrix ADC after a few hours.
Yes, we‘re facing a very version- and config-dependent result. It‘s not crashing per se, and we‘re changing a factory default with that setting. In case of trouble, simply block UDP at the firewall edge and failback to native TCP-based HDX until a fixed firmware is available.
— Thorsten Rood (@ThorstenRood) December 22, 2020
Zabbix Monitoring
After the dust was settled, I also added an additional Trigger to our MSP Zabbix monitoring, were we compare now, if the traffic on the VPX is unusual high, in comparison to the number of active ICA sessions.
It’s very simple, but gets the job done:
{Template SNMP Citrix Gateway:Throughput.avg(15m)} > {Template SNMP Citrix Gateway:aaaCurICAOnlyConn.avg(15m)}
Citrix Knowledge Center Article
In the meantime (24.12.2020 here in Europe) Citrix has published an official statement regarding this subject in their Knowledge Center:
https://support.citrix.com/article/CTX289674
The official statement from Citrix is, to disable the DTLS feature on the Citrix Gateway virtual server.
Additionally Citrix announces an upcoming enhancement for the Citrix ADC (NetScaler) Firmware, where this special attack will be eliminated.
This is to be expected 12.01.2021.
Update 11.02.2021: Citrix has released new firmware versions. These firmware fixes the problems with -helloVerifiyRequest and makes it a working solution. With the current firmware and -helloVerifiyRequest enabled, you are safe from the DDoS amplify attack, while still being able to offer the Citrix EDT protocol.
Summary
There are three possible solutions, I list those in my personal preferred order:
- Set
-helloVerifyRequest ENABLEDin the DTLS profile.
It has been reported by many comments here on my blog and on Twitter, that there are Citrix ADC firmware versions, which will have a memory leak and crash a few hours later. This was fixed by Citrix, please check: CTX289674. Fixed in:- 13.0-71.44 and later
- 12.1-60.19 and later
- 11.1-65.16 and later
- Block UDP:443 traffic targeting the Citrix Gateway VIP at the corporate firewall level, to prevent your states table being overwhelmed.
- Disable the DTLS feature on the Citrix Gateway virtual server, as recommended by Citrix, if you are not ready for the new firmware version, yet.
Final words
To find out, if you are under attack, take a look at Citrix ADC Dashboard and look at the current Throughput and ask yourself if this makes sense:

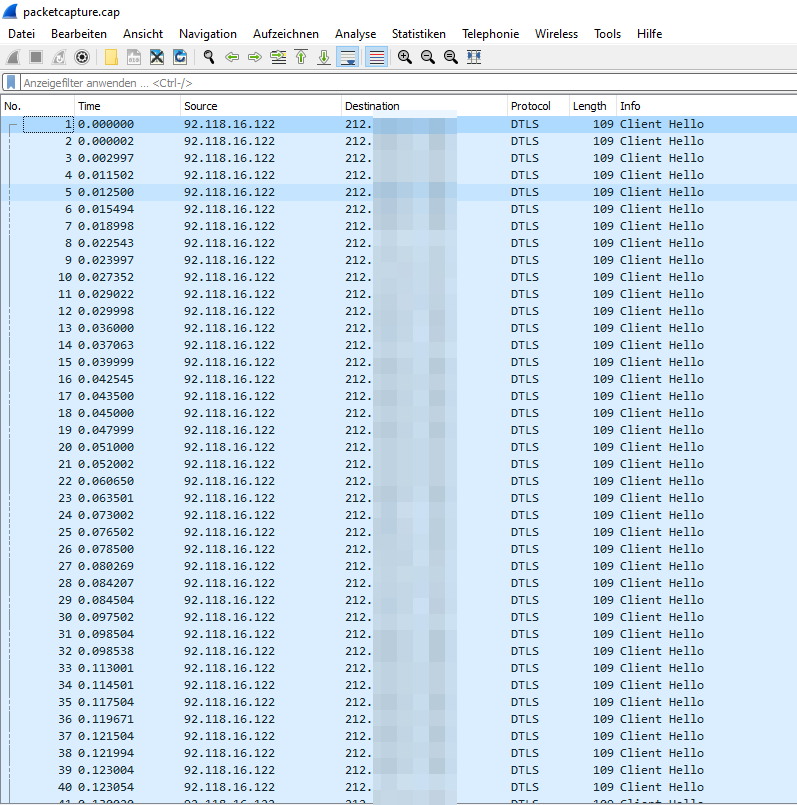

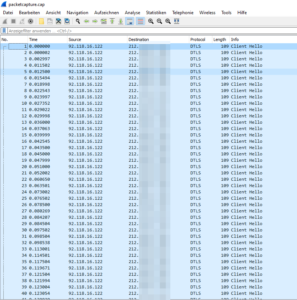

Additionally you might want to tcpdump and/or Wireshark you corporate Firewall WAN interface and search for UDP:443 traffic pointing at your Citrix Gateway VIP, if it looks somewhat similar to my Wireshark screenshot above.
Also subscribe to the on-going discussion in the World of EUC Slack, which is a tremendous source for everything going on in the EUC space.
